Hydraulic Cilinders

Slider Image
Slider Thumb
Slider Thumb
Slider Thumb

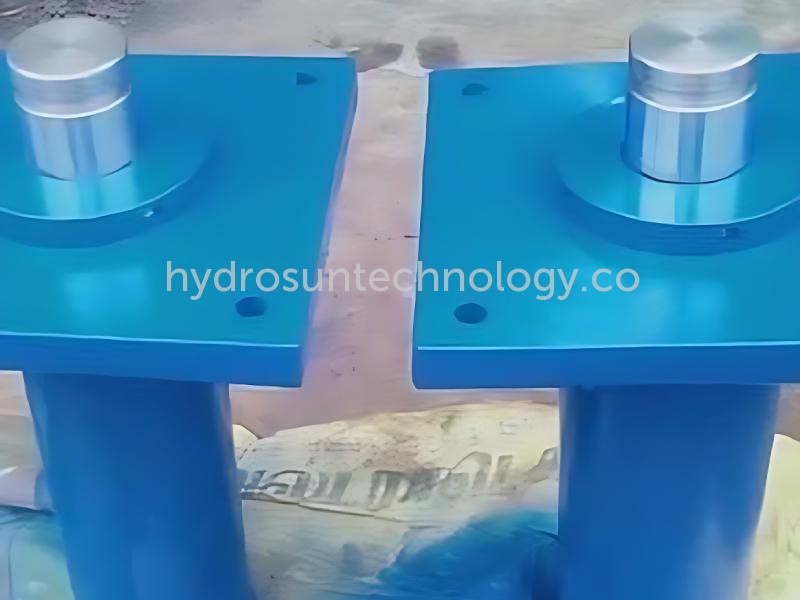

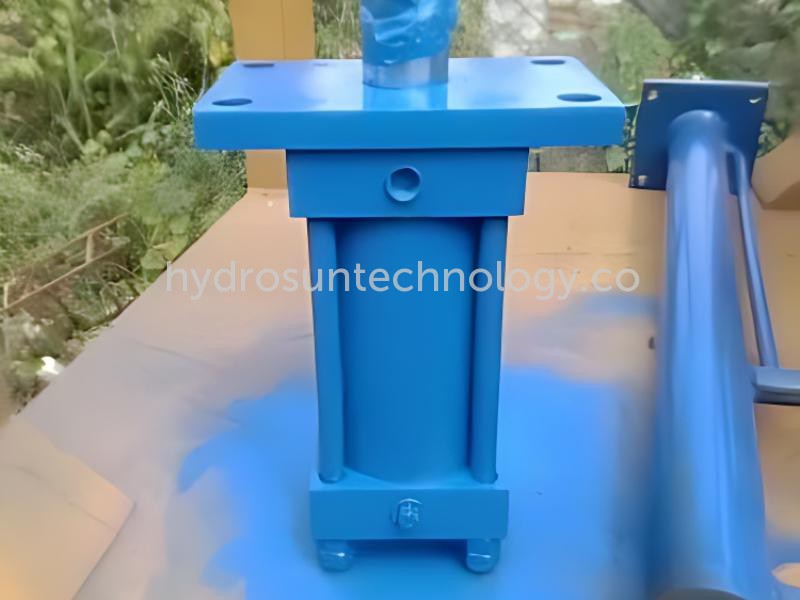

A Double Acting Cylinder is a type of hydraulic or pneumatic actuator that uses pressurized fluid or air to move the piston in both directions extending and retracting offering precise control and consistent force during the entire stroke. This dual-action mechanism ensures efficient performance in applications that require movement in two directions without relying on external forces such as springs or gravity. The cylinder consists of a robust barrel, high-strength piston rod, seals, and ports for fluid entry and exit at both ends.

Cash,Cheque

Key Attributes
Industry-specific Attributes
  • Bore Diameter 25 – 500 mm
  • Rod Diameter 16 – 300 mm
  • Stroke Length 50 – 6000 mm
Other Attributes
  • Operating Pressure 100 – 400 bar
  • Operating Temperature –20°C to +90°C
  • Piston Speed 0.05 – 1.5 m/s
  • Mounting Type Flange / Clevis / Trunnion / Eye / Foot Mount
  • Material Alloy Steel / Stainless Steel / Cast Iron
  • Seal Type NBR / PU / Viton / PTFE
  • Cycle Type Double Acting (push & pull on both sides of piston)
Slider Image
Slider Thumb

A Single Acting Cylinder is a type of hydraulic or pneumatic actuator designed to produce motion in one direction only, using pressurized fluid or air for the working stroke. The return movement is achieved either by an internal spring, gravity, or external load. This simple and efficient design makes it ideal for applications where force is required in a single direction.Constructed with a robust cylinder barrel, precision-machined piston rod, durable seals, and a single fluid port, these cylinders deliver reliable performance with minimal maintenance.

Cash,Cheque

Key Attributes
Industry-specific Attributes
  • Bore Diameter 20 – 400 mm
  • Rod Diameter 16 – 250 mm
  • Stroke Length 50 – 5000 mm
Other Attributes
  • Operating Pressure 70 – 300 bar
  • Operating Temperature –20°C to +80°C
  • Piston Speed 0.05 – 1.0 m/s
  • Mounting Type Flange / Clevis / Trunnion / Eye / Foot Mount
  • Material Alloy Steel / Stainless Steel / Cast Iron
  • Seal Type NBR / PU / Viton / PTFE
  • Cycle Type Single Acting (pressure applied only on one side, spring or gravity return)
Slider Image
Slider Thumb

Industrial Hydraulic Cylinders are robust mechanical actuators that use pressurized hydraulic fluid to produce powerful linear motion for heavy-duty industrial applications. They are engineered to handle high loads, withstand extreme operating conditions, and deliver consistent performance over extended service life.These cylinders typically feature a precision-machined barrel, hardened piston rod, high-quality seals, and end caps, ensuring leak-free operation and minimal wear. They are available in single-acting, double-acting, welded, and tie-rod designs, with various bore sizes, stroke lengths, and mounting configurations to suit different machinery requirements.

Cash,Cheque

Key Attributes
Industry-specific Attributes
  • Bore Diameter 50 – 600 mm
  • Rod Diameter 25 – 350 mm
  • Stroke Length 100 – 8000 mm
Other Attributes
  • Operating Pressure 100 – 400 bar
  • Operating Temperature –20°C to +90°C
  • Piston Speed 0.05 – 2 m/s
  • Mounting Type Flange / Clevis / Trunnion / Eye / Foot Mount
  • Material Alloy Steel / Stainless Steel / Cast Iron
  • Seal Type NBR / PU / Viton / PTFE
  • Life Cycle 1 – 10 million cycles (approx.)
Slider Image
Slider Thumb
Slider Thumb
Slider Thumb

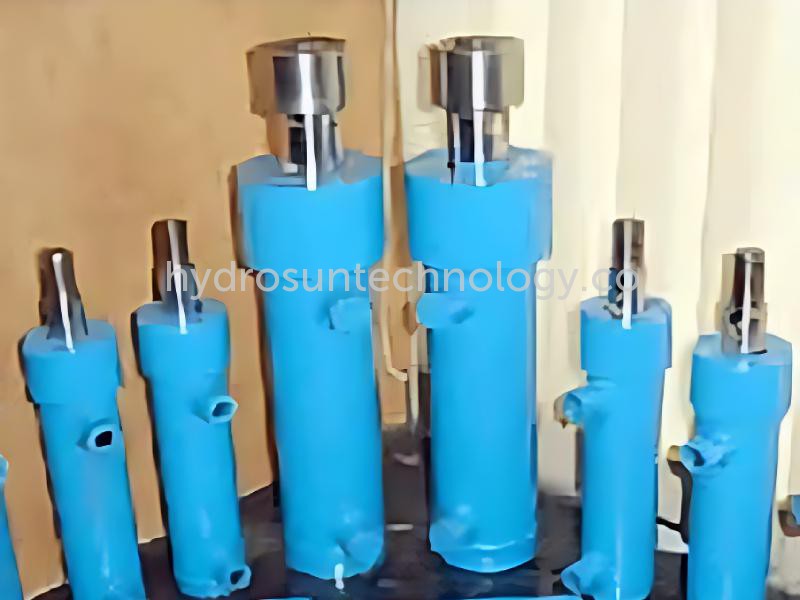

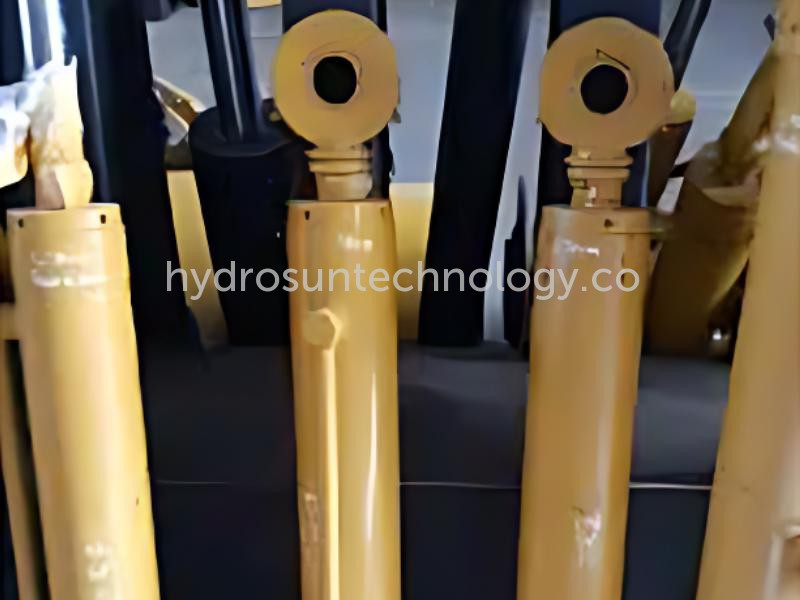

Iron Hydraulic Cylinders are high-strength actuators designed to convert pressurized hydraulic fluid into powerful linear motion for industrial and heavy-duty applications. Made from robust cast or forged iron, these cylinders offer excellent load-bearing capacity, superior durability, and resistance to wear, making them ideal for operations in harsh working environments.The cylinder assembly includes a precision-machined barrel, hardened piston rod, high-quality seals, and secure end caps to ensure leak-free performance.

Cash,Cheque

Key Attributes
Industry-specific Attributes
  • Bore Diameter 40 – 500 mm
  • Rod Diameter 20 – 300 mm
  • Stroke Length 50 – 6000 mm
Other Attributes
  • Operating Pressure 70 – 350 bar
  • Working Temperature –20°C to +80°C
  • Piston Speed 0.1 – 1 m/s
  • Mounting Type Flange / Clevis / Trunnion / Foot Mount
  • Material High-Grade Cast Iron / Alloy Steel
  • Seal Type NBR / PU / Viton
  • Life Cycle 1 – 5 million cycles (approx.)
